Directional Boring and Utility Trenching in Cathedral City

Scope of Work Description:

For this project in Cathedral City, Devco provided comprehensive underground utility services, ensuring efficiency, safety, and precision throughout the job. The scope of work included:

Utility Delineation

• USA Dig Alert: Devco secured and maintained a valid USA dig alert ticket to locate public underground utilities on the property.
• Private Utility Locator: A private locator was utilized to identify existing utilities that could intersect the directional bore path.

Utility Verification via Potholing

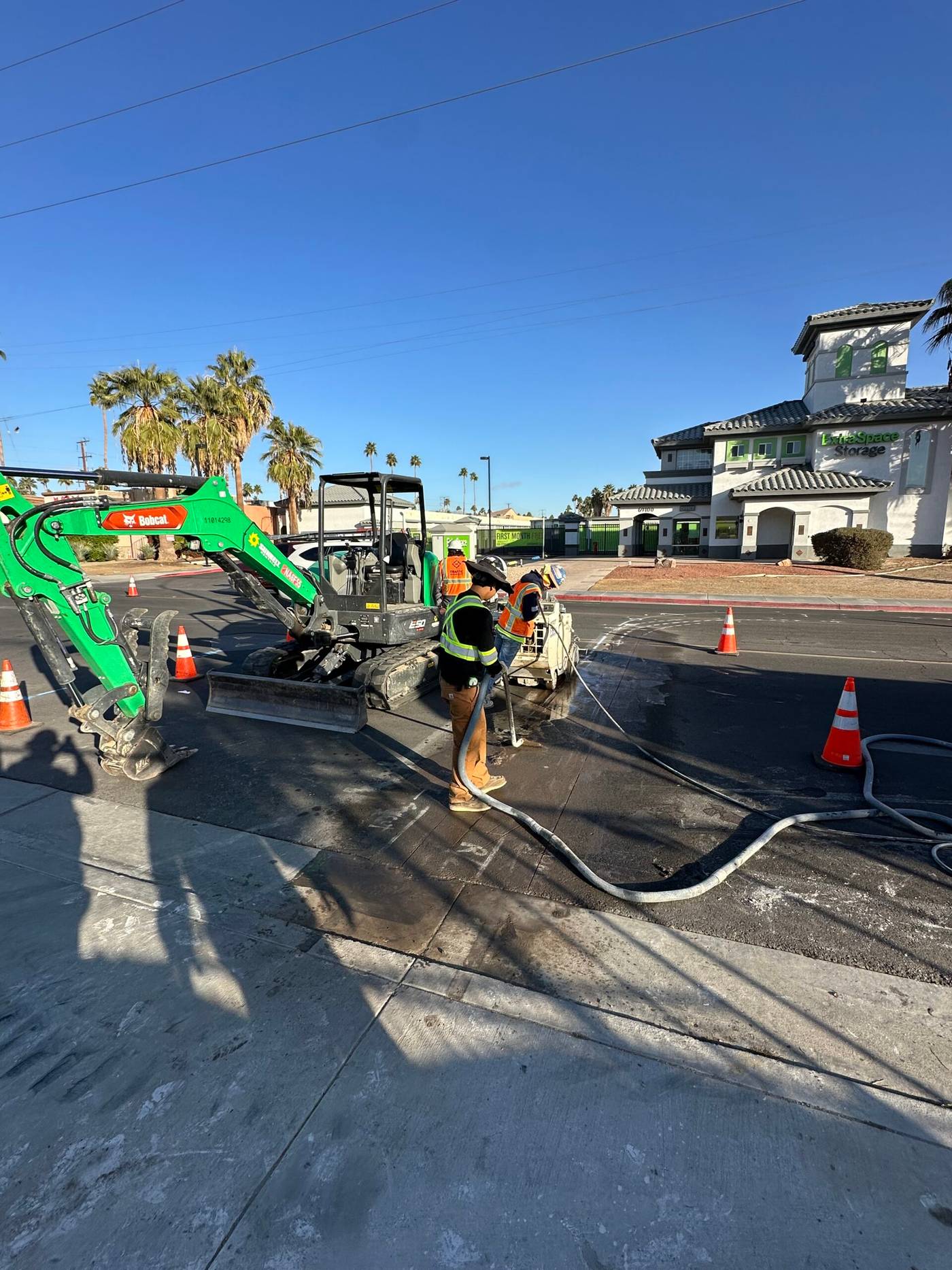

• Potholing Operations: Devco performed potholing using the 8” core method to confirm the location of underground utilities that intersected or ran parallel to the directional bore paths.
• Backfilling and Restoration: Potholes were backfilled with utility sand or a 50/50 mix, compacted, and restored with asphalt sealant for a smooth finish.

Excavation and Preparation

• Bore Pits: Devco excavated directional bore pits, stockpiling spoils on-site for use in backfilling.

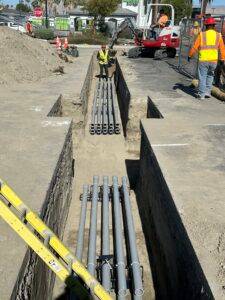

• Trenching: Trenching was performed for areas that could not be directionally bored, including radii and turns. Spoils from trenching were also stockpiled for backfill.

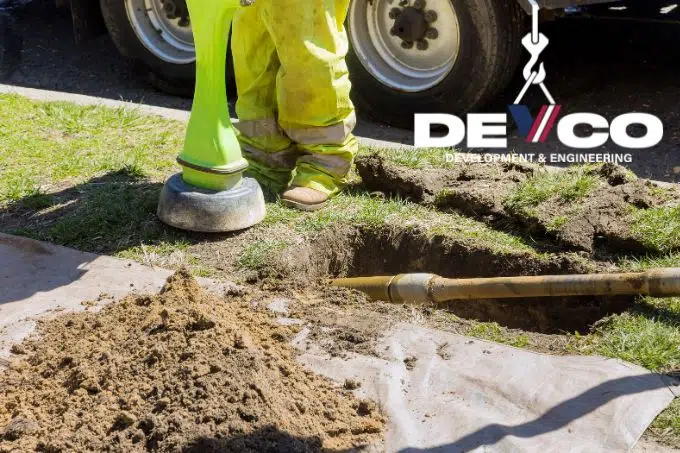

Directional Boring

• Boring Operations: Devco executed directional boring at 10 specified locations, installing approximately 2,100 feet of Schedule 40 PVC conduit (1”, 1.25”, or 1.5”).
• Fluid Management: All directional boring fluid was hauled off and disposed of responsibly.

Bollard and Pad Installation

• Installed 6” galvanized steel bollards at 35 locations, each with a concrete cap.
• Constructed concrete pads in varying dimensions:
  • (1) 10’x12’x9”
  • (1) 6’x14’x6”
  • (8) 4’x6’x6”
  • (53) 2’x3’x6”

Restoration

• Bore pits and trenches were backfilled and compacted with native soil.
• All trenches and removed asphalt or concrete were restored to trench width only, ensuring minimal disruption to the site.

This project demonstrates Devco’s expertise in Directional Boring, Utility Trenching, and Hydro Excavation, delivering a precise and professional result while adhering to industry standards and safety regulations.
