Navigating Below: An Insight into Trenchless Sewer Repair


In the realm of sewer repair and maintenance, innovative solutions are always in demand to combat the perennial issues of surface disruption, lengthy project durations, and the high costs involved. This is where Trenchless Sewer Repair (TSR) comes as a beacon of hope. Unlike traditional sewer repair methods which require extensive digging and are often accompanied by longer completion times and hefty costs, Trenchless Sewer Repair stands out as a faster, more cost-effective, and less intrusive alternative.

Traditional sewer repair methods often entail excavating large portions of the ground to access and repair the sewer lines. This not only disrupts the landscape and possibly traffic but can also lead to potential damage to other underground utilities. Moreover, the restoration of the surface post-repair is another complex, time-consuming, and costly affair.

Understanding Trenchless Sewer Repair

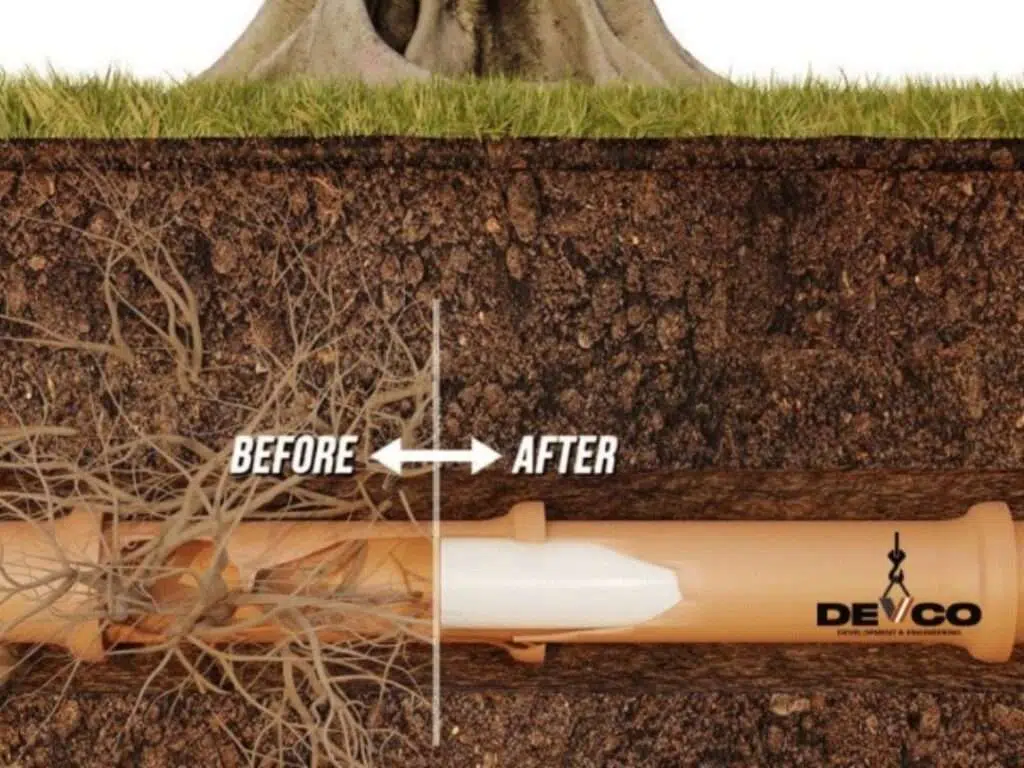

Trenchless Sewer Repair (TSR) is a modern approach to addressing sewer line problems without the need for extensive excavation. This technique has been gradually refined over the years since its inception in the 1970s, presenting a viable alternative that’s become increasingly popular among municipal bodies and private property owners alike.

In essence, Trenchless Sewer Repair encompasses a range of methods that allow technicians to access, repair, or replace underground sewer lines with minimal digging. This not only speeds up the project but also significantly reduces the associated costs and surface disruptions.

Now, let’s delve into the various types of Trenchless Sewer Repair methods that have revolutionized the way we approach sewer maintenance and repairs:

  • Cured-In-Place Pipe (CIPP): A method that involves inserting and running a felt lining into the existing pipe, which is then cured in place to form a tight-fitting, corrosion-resistant new pipe within the old one.
  • Pipe Bursting: This method involves breaking apart the old, damaged pipe while simultaneously pulling a new pipe into place.
  • Slip Lining: Slip lining involves inserting a smaller, new pipe into the existing damaged pipe, essentially creating a pipe within a pipe.
  • Spray Lining: A process where an epoxy coating is sprayed onto the interior walls of the existing pipe, sealing any cracks or damages.

These methods form the core of Trenchless Sewer Repair technology, each with its own set of advantages, making sewer repair a less daunting task than it used to be. In the following sections, we will delve deeper into each of these methods, exploring their processes, advantages, and ideal use cases.

Types of Trenchless Sewer Repair

Cured-In-Place Pipe (CIPP)

Cured-In-Place Pipe, often abbreviated as CIPP, is a common method employed for trenchless sewer repair. This technique involves the use of a resin-saturated felt tube made of polyester, fiberglass cloth, or a number of other materials suitable for resin impregnation, to repair existing pipelines. CIPP is a reliable choice for repairing leaks or structural impairments in sewer, water, or gas pipelines, among others.

Process of CIPP:

  1. Inspection: Initially, a thorough inspection of the damaged pipeline is conducted using camera equipment to understand the extent and location of the damage.
  2. Cleaning: The pipeline is then cleaned to remove any obstructions and ensure a smooth process ahead.
  3. Resin Impregnation: A felt tube is saturated with a thermosetting resin mixture.
  4. Insertion: The resin-saturated tube is inserted into the damaged pipeline using air or water pressure.
  5. Curing: Once in place, the resin is cured using hot water or UV light to form a tight-fitting, jointless and corrosion-resistant replacement pipe within the old pipe.
  6. Final Inspection: A final inspection is conducted to ensure the integrity and correctness of the repair work.

Benefits of CIPP:

  • Minimal Disruption: CIPP requires minimal excavation, which means less disruption to the surrounding areas and normal daily routines.
  • Cost-Effectiveness: With reduced labor and equipment requirements compared to traditional methods, CIPP can be more cost-effective in the long run.
  • Longevity: The materials used in CIPP are durable and can significantly extend the lifespan of the existing pipeline.
  • Versatility: CIPP can be used to repair a variety of pipeline materials, including cast iron, PVC, and clay, among others.

Possible Disadvantages:

  • Limited Repair: CIPP may not be suitable for pipes with severe joint failure or those that are collapsed.
  • Cost: Initial costs might be higher than traditional repair methods, but this is often offset by the lower disruption and longer-lasting solution it provides.

Pipe Bursting

Pipe bursting is another trenchless method used for replacing old, deteriorated pipes with new ones. Unlike CIPP, which creates a new pipeline within the old one, pipe bursting physically breaks apart the old pipe while simultaneously pulling a new pipe into place. This method is especially suitable for scenarios where the existing pipe has deteriorated to a point where relining (like with CIPP) is not viable.

Process of Pipe Bursting:

  1. Pre-Inspection: Similar to CIPP, a thorough camera inspection is done to understand the extent of damage and the layout of the existing pipeline.
  2. Access Points: Two access points are created; one for entry and the other for exit.
  3. Bursting Head Insertion: A bursting head, which is larger in diameter than the existing pipe, is inserted into the entry point along with the new pipe attached to its back end.
  4. Pipe Fragmentation: As the bursting head moves through the old pipe, it breaks it apart, creating space for the new pipe.
  5. New Pipe Installation: Simultaneously, the new pipe is pulled through the cleared path by the bursting head until it reaches the exit point.
  6. Connections: The new pipe is then connected to the existing system at both the entry and exit points.
  7. Final Inspection: A final camera inspection is conducted to ensure the new pipe is correctly installed and fully operational.

Benefits of Pipe Bursting:

  • Efficient Pipe Replacement: Pipe bursting allows for the complete replacement of the old pipe, making it a good option for severely damaged pipelines.
  • Less Disruptive: Like CIPP, pipe bursting requires only entry and exit points, minimizing surface disruption.
  • Material Flexibility: The new pipe can be of the same or different material as the old pipe, providing flexibility in material selection based on the specific needs of the project.

Possible Disadvantages:

  • Complexity: The process can be complex and requires skilled technicians, especially in areas with multiple utility lines.
  • Cost: The initial investment could be higher than traditional methods due to the specialized equipment and expertise required.
  • Access Points: Creating access points may require some excavation which could be a disadvantage in very constrained or sensitive areas.

Slip Lining

Slip lining is one of the simplest forms of trenchless sewer repair. It involves inserting a new, smaller-diameter pipe into the existing, larger-diameter pipe. The space between the old and the new pipe might be filled with grouting to keep the new pipe in place. This method is commonly used to repair leaks or restore structural stability to an existing pipeline.

Process of Slip Lining:

  1. Pre-Inspection: A camera inspection is carried out to assess the condition of the existing pipe and to understand the extent of damage.
  2. Cleaning and Preparation: The existing pipe is cleaned and any obstructions are removed to ensure smooth insertion of the new pipe.
  3. Pipe Measurement and Preparation: The new pipe is measured and cut to the required length. It’s often prepared in sections for easier insertion.
  4. Insertion: The new pipe is inserted into the existing pipe either by pulling or pushing it through from one end to the other.
  5. Grouting (if necessary): Once the new pipe is in place, the annular space between the old and the new pipe may be filled with grout to secure the new pipe.
  6. Sealing Ends: The ends of the new pipe are sealed to the existing system to ensure a leak-free connection.
  7. Final Inspection: A final camera inspection is conducted to ensure correct installation and functionality.

Benefits of Slip Lining:

  • Simplicity: The process is relatively simple and doesn’t require specialized training or equipment.
  • Cost-Effectiveness: Slip lining is often less expensive than other trenchless repair methods due to its simplicity.
  • Minimal Disruption: Like other trenchless methods, slip lining causes minimal disruption to the surface and surrounding areas.

Possible Disadvantages:

  • Reduced Diameter: The new pipe has a smaller diameter which may reduce the flow capacity.
  • Not Suitable for Collapsed Pipes: Slip lining isn’t suitable for severely collapsed or misaligned pipes.
  • Transition Points: The transition points where the new pipe connects to the existing pipe can create ledges or lips which could cause blockages or reduced flow.

Spray Lining

Spray lining, also known as spray-on pipe lining or spray coating, is a method employed to restore the internal surface of old, corroded, or eroded pipes. This trenchless rehabilitation process uses a liquid epoxy resin coating sprayed evenly across the inner surface of the pipe, creating a smooth, durable new surface that enhances flow efficiency and extends the life of the existing pipe.

Process of Spray Lining:

  1. Inspection and Cleaning: Initially, a thorough inspection and cleaning of the existing pipe are performed to remove any debris, corrosion, or other obstructions that may interfere with the adhesion of the epoxy coating.
  2. Preparation: The inner surface of the pipe is prepared, often through sandblasting or other abrasive methods, to ensure optimal adhesion of the epoxy coating.
  3. Mixing and Heating of Epoxy: The epoxy resin is mixed and heated to the right consistency and temperature for application.
  4. Spray Application: Using specialized spray equipment, the epoxy resin is sprayed evenly across the internal surface of the pipe. Multiple layers may be applied to achieve the desired thickness.
  5. Curing: The epoxy coating is allowed to cure, forming a hard, smooth surface within the existing pipe.
  6. Final Inspection: A final inspection is carried out to ensure the coating has adhered correctly and the pipe is ready for use.

Benefits of Spray Lining:

  • Versatile: Spray lining can be used in a variety of pipe materials and diameters.
  • Cost-Effective: Compared to full pipe replacement, spray lining is a cost-effective solution.
  • Minimal Disruption: As a trenchless method, spray lining minimizes surface disruption, reducing the associated costs and inconvenience.
  • Increased Flow Efficiency: The smooth surface of the epoxy coating can improve flow efficiency within the pipe.

Possible Disadvantages:

  • Thickness Limitations: The achieved lining thickness might be limited compared to other methods like Cured-In-Place Pipe (CIPP) lining.
  • Surface Preparation: Thorough cleaning and preparation are critical for successful adhesion, which may not always be achievable in severely corroded or damaged pipes.
  • Not Suitable for Severely Damaged Pipes: Similar to slip lining, spray lining may not be suitable for severely collapsed or misaligned pipes.

Comparative Analysis

The array of trenchless sewer repair methods, each with its unique advantages and disadvantages, provides a robust toolkit for addressing a variety of underground piping issues. In this section, we’ll compare these trenchless repair techniques to provide a clearer understanding of their situational applications.

Comparing Trenchless Sewer Repair Techniques:

  • Effectiveness:
    • CIPP is highly effective for sealing leaks and closing small holes while reinforcing the structural integrity of the pipe.
    • Pipe bursting is effective for replacing severely damaged or deteriorated pipes.
    • Slip lining provides a new structural pipe within an existing pipe and is effective for improving flow and sealing leaks.
    • Spray lining is effective for addressing minor corrosion, erosion, or leaks, and for enhancing flow efficiency.
  • Cost:
    • CIPP and Spray Lining are generally more cost-effective for repairing pipes with minor to moderate damage.
    • Pipe bursting and Slip lining may incur higher costs due to the need for new piping material but are still cheaper and less disruptive than full excavation and replacement.
  • Durability:
    • CIPP and Slip Lining provide long-lasting solutions that can extend the life of the piping system significantly.
    • Pipe bursting provides a brand new pipe, offering a long-term solution.
    • Spray lining may not be as durable as other methods but still significantly extends the life of the pipe.
  • Application:
    • CIPP is versatile and can be used in various pipe materials and diameters.
    • Pipe bursting requires enough space and is more suitable for larger diameter pipes.
    • Slip lining and Spray lining are also versatile but may have limitations based on the extent of pipe damage and diameter.

Situational Analysis:

  • Minor to Moderate Damage:
    • For pipes with minor to moderate damage, CIPP or Spray Lining is often a suitable choice due to their cost-effectiveness and ability to seal leaks and improve flow efficiency.
  • Severe Damage or Deterioration:
    • For severely damaged or deteriorated pipes, Pipe Bursting is a better choice as it replaces the old pipe with a new one.
  • Improving Flow Efficiency:
    • Slip Lining and Spray Lining are effective for improving flow efficiency due to the smooth interior surface they provide.
  • Structural Integrity:
    • If enhancing structural integrity is a priority, CIPP and Slip Lining are excellent choices as they provide a new structural pipe within the existing pipe.
  • Cost Considerations:
    • Budgetary considerations may dictate the choice of method. CIPP and Spray Lining are often more cost-effective, whereas Pipe Bursting and Slip Lining might be chosen for their long-term durability and effectiveness, despite the higher initial investment.

Each trenchless sewer repair method serves a particular set of needs and the choice between them would largely depend on the specific conditions of the project including the extent of damage, the pipe material, diameter, and the budget allocated for the repair.

Cost Analysis

Trenchless sewer repair has revolutionized the way we address underground piping issues, primarily by minimizing the operational costs associated with traditional excavation methods. This section will delve into the cost-efficiency of trenchless sewer repair techniques compared to traditional methods, along with a brief cost comparison among the different trenchless techniques.

Cost-efficiency of Trenchless Sewer Repair Over Traditional Methods:

  • Lower Restoration Costs:
    • Traditional methods often require digging up large areas, which later necessitates restoration work. Trenchless methods significantly reduce or eliminate the need for restoration, thus saving a considerable amount of money.
  • Reduced Labor Costs:
    • With trenchless methods, the need for manual labor is considerably reduced as most of the work is done by specialized equipment. This reduction in labor leads to a decrease in the overall cost of the project.
  • Time-Savings:
    • Trenchless sewer repair projects are typically completed much faster than traditional methods, leading to lower labor costs and less downtime, which can be particularly beneficial in commercial areas.
  • Less Disruption:
    • Less disruption to the surrounding area means fewer costs related to traffic management, business downtime, and other indirect costs that can accrue from more disruptive traditional methods.

Cost Comparison Among Different Trenchless Sewer Repair Techniques:

  • Initial Investment:
    • CIPP and Spray Lining are generally more cost-effective in terms of initial investment as they primarily involve the rehabilitation of existing pipes.
    • Pipe Bursting and Slip Lining may require a higher initial investment due to the cost of new piping material.
  • Operational Costs:
    • The operational costs of CIPP and Spray Lining are relatively lower as they require less heavy machinery and manpower.
    • Pipe Bursting and Slip Lining may have higher operational costs due to the requirement of more specialized equipment and possibly more personnel.
  • Long-term Value:
    • All trenchless methods provide significant long-term value by extending the life of the piping system, improving flow efficiency, and reducing the likelihood of future repairs.
    • Pipe Bursting, by providing a brand new pipe, may offer the highest long-term value despite the higher initial cost.
  • Project Complexity:
    • More complex projects may incur higher costs regardless of the method chosen. However, the cost disparity between different trenchless methods may be more pronounced in complex projects due to the varied capabilities and limitations of each method.

By weighing the initial investment against the long-term benefits and considering the specific conditions and requirements of the project, decision-makers can select the most cost-effective trenchless sewer repair technique that meets their needs.

Case Studies: Showcasing the Efficiency of Trenchless Sewer Repair

The application of trenchless technologies, particularly in sewer repair, has been a game changer in the realm of urban infrastructure maintenance. These real-world case studies provide valuable insights into the successful implementation of trenchless sewer repair, emphasizing its efficiency, cost-effectiveness, and minimal disruption to the urban environment.

City of Columbus Sewer System Rehabilitation

The City of Columbus took the initiative to upgrade its aging sewer system through trenchless technologies. The project aimed at enhancing the city’s resilience to stormwater overflow while minimizing the inconvenience to the residents.

Project Highlights:

  • Problem Identification: The existing sewer system was prone to overflows during heavy rain, causing environmental and health hazards.
  • Trenchless Solution: Cured-in-place pipe (CIPP) lining was selected as the trenchless method to rehabilitate the damaged sections of the sewer system.
  • Implementation: The city carefully planned and executed the CIPP installation, ensuring minimal disruption to traffic and daily life.
  • Outcome: The project was completed on time and within budget, significantly reducing sewer overflows and improving the system’s overall performance.

ASCE’s Compilation of Trenchless Technology Case Studies

The American Society of Civil Engineers (ASCE) provides a comprehensive compilation of case studies showcasing the effectiveness of trenchless technology in various scenarios.

Key Takeaways:

  • Diverse Applications: The case studies reveal the versatility of trenchless technology in addressing various underground infrastructure challenges.
  • Cost Savings: Trenchless solutions proved to be cost-effective in the long run, especially when considering the reduced need for surface restoration.
  • Environmental Benefits: The minimal excavation required in trenchless methods significantly lowers the environmental impact compared to traditional open-cut methods.

Lessons Learned:

  1. Proper Planning is Crucial: A well-thought-out plan is essential to address potential challenges and ensure the success of a trenchless project.
  2. Customized Solutions: Trenchless technologies offer a wide range of solutions, and selecting the most suitable method is vital to meet the project’s specific needs.
  3. Community Engagement: Keeping the community informed and engaged minimizes resistance and fosters a smoother implementation process.
  4. Continuous Monitoring: Regular inspection and monitoring during the project ensure that any deviations from the plan are promptly addressed.

These case studies and the derived lessons underscore the profound impact and the extensive possibilities that trenchless sewer repair presents. By analyzing and learning from these real-world implementations, municipalities and utility providers can better prepare for and execute trenchless projects, fostering a more sustainable and efficient urban infrastructure management.

Unearthing the Future: Embracing Trenchless Sewer Repair

In our exploration of trenchless sewer repair, we’ve traversed through its numerous advantages, real-world applications, and the profound impact it holds for modern urban infrastructure. The journey from understanding what trenchless technology entails to witnessing its successful implementations sheds light on its significance in today’s fast-evolving urban landscapes.

Trenchless sewer repair emerges as a beacon of efficiency, cost-effectiveness, and environmental sustainability. It extends a promise of significantly reduced disruption to both the surface and the daily lives of the urban populace. The case studies from the City of Columbus and the compilation by ASCE further accentuate the real-world applicability and the remarkable outcomes achievable through this technology.

The call for adopting trenchless methods is not just a nod towards modernization but a stride towards responsible and sustainable urban infrastructure management. The ripple effect of such adoption resonates through enhanced public health, aesthetic urban landscapes, and a notable reduction in environmental footprint.
